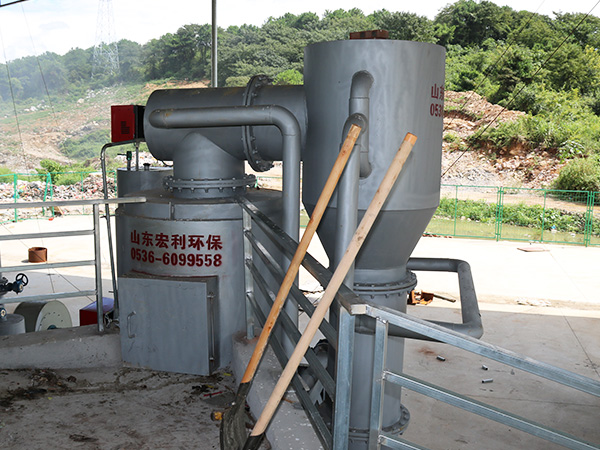

Municipal/domestic Waste Incinerator1

Structure: vertical
Equipment area (㎡): 80-200 (customizable)
Power (kw): 8.26-24.5 (customizable)
Chimney (mm): Φ325*12m-Φ425*12m (customizable)
Weight (kg): 7500-14500 (customizable)
Operating voltage V: 380 (customizable)
contact us leave a message
Product description

The domestic waste incinerator adopts the patented high-temperature pyrolysis gasification technology, which conforms to the 3T+E design principle; the entire system runs under negative pressure.

If the temperature of the primary combustion chamber is above 550℃, the burner will automatically shut down, and if the temperature of the secondary combustion chamber is above 850℃, the burner will automatically shut down. The whole operation process does not require fuel to assist combustion, which saves operating costs.

The system is fully enclosed, the flue gas does not leak, the combustion chamber temperature is stably controlled at 850-1200°C, and the flue gas residence time is ≥2s, so that the dioxin-like harmful substances are fully decomposed and discharged up to the standard.

Product features
Municipal/domestic Waste Incinerator
  • 01

    Smokeless and odorless, meeting emission standards

    The emission from the incinerator is smokeless and odorless, meeting the emission standards.
  • Municipal/domestic Waste Incinerator
  • 02

    High temperature pyrolysis gasification technology

    New high-temperature pyrolysis gasification technology, high-temperature incineration treatment, safe and pollution-free.
  • Municipal/domestic Waste Incinerator
  • 03

    Simple structure and easy operation

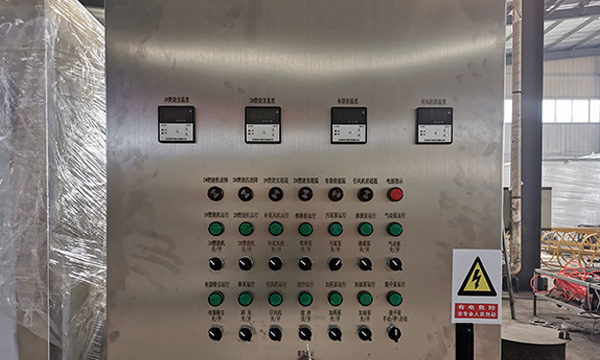

    Automatic control system, automatic temperature control, digital display, easy to operate and use.
  • Applicable place/waste
    Municipal/domestic Waste Incinerator
    • Solve the complex problem of garbage in towns and villages
    • Solve the problem of large amount of garbage in towns
    • Solve the problem of scattered and non-concentrated garbage in towns
    • Solve the problem of random dumping of garbage in towns
    Product parameters
    Model Land area(㎡) Power(kw) Chimney(mm) Weight(kg) Operation voltage(V)
    HLPG-2-1 80 8.26 Φ325*12m 75000 380
    HLPG-3-1 100 9.26 Φ325*12m 90000 380
    HLPG-5-1 150 15.2 Φ425*12m 12000 380
    HLPG-10-1 200 24.5 Φ425*12m 14500 380

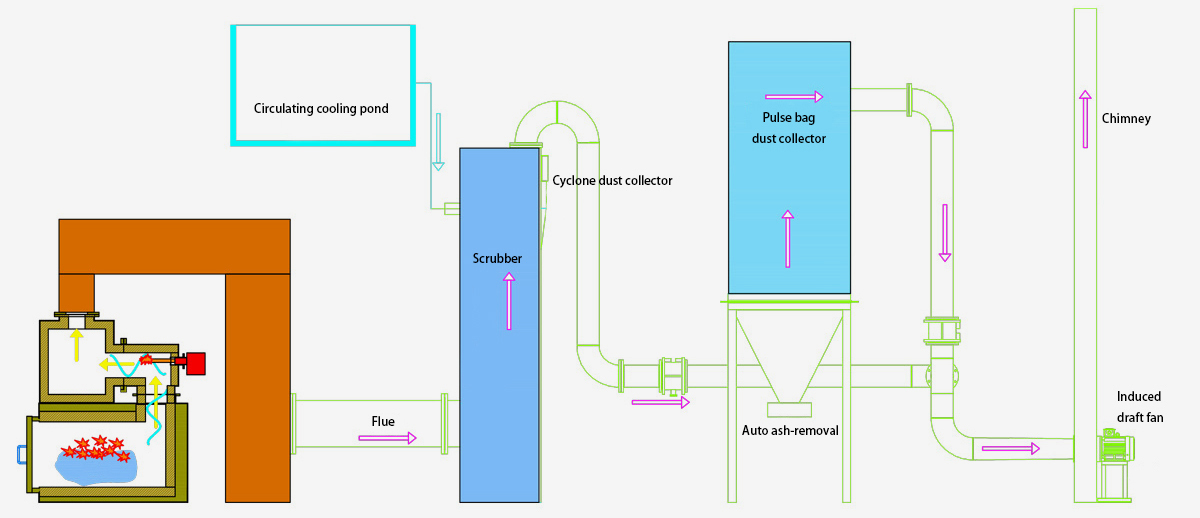

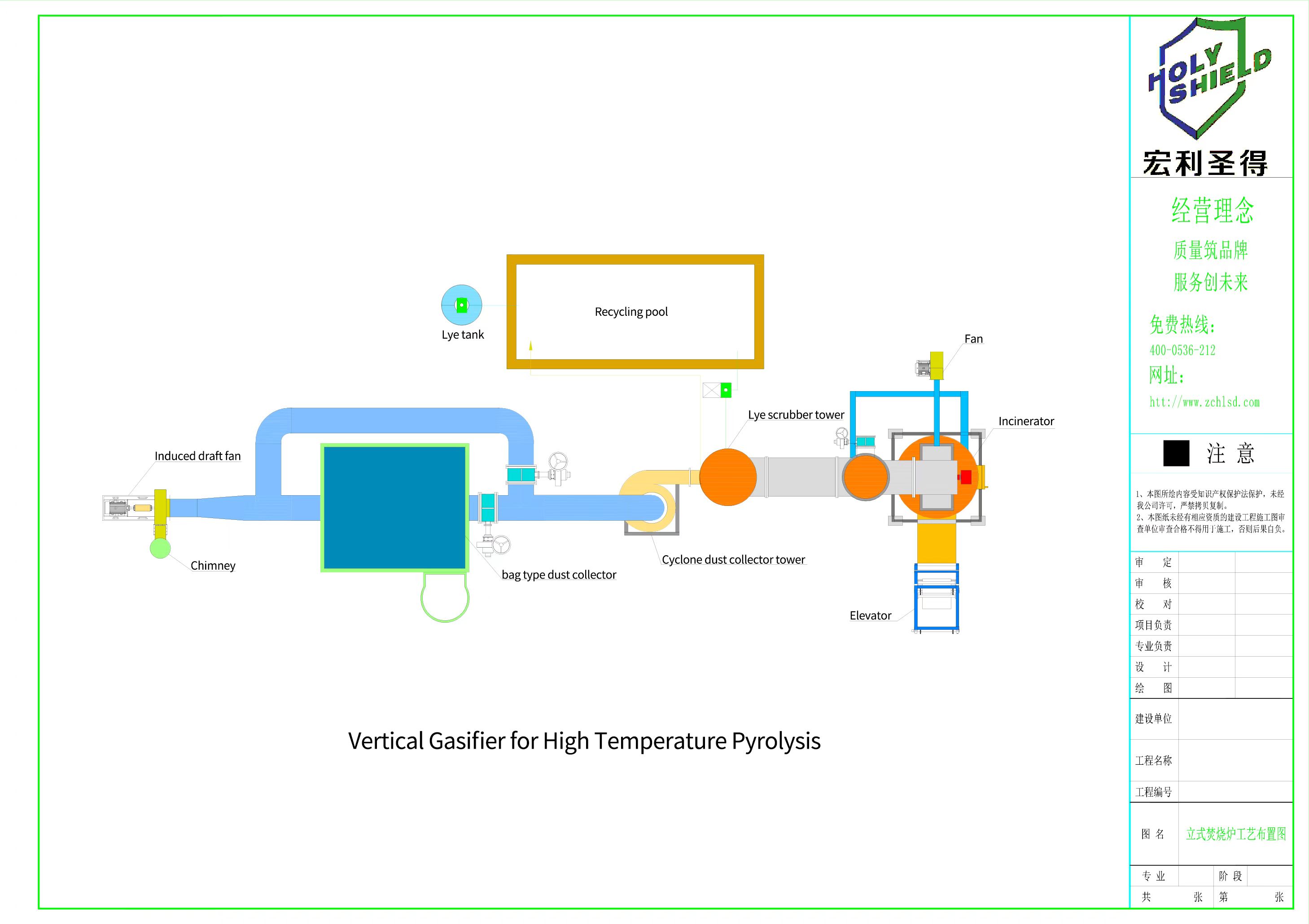

    Combustion + Flue gas process

    Combustion + Flue gas process

    Combustion Process
    • 01The sorted garbage enters the primary combustion chamber in batches at a predetermined time
    • 02By controlling the amount of air intake, the garbage is dried, thermally decomposed and burned out in the primary combustion chamber, and ash and some small particles that cannot be thermally decomposed are discharged out of the furnace through the ash discharge device
    • 03The flue gas generated during drying and thermal decomposition enters the secondary combustion chamber
    • 04The combustible gas is fully decomposed by 2S at more than 850°C and discharged to the subsequent treatment process
    Flue gas process
    • Stage1 Stage1The high temperature gas discharged from the secondary combustion chamber is treated by the flue gas scrubber, and the temperature is reduced from 850°C to 180°C in 2s, which effectively overcomes the secondary synthesis conditions of dioxin; secondly, being atomized by the special nozzle , it performs synchronous disconnection Sulfur Denitrification.
    • Stage2 Stage2Under the action of cyclone dust removal of the medium-efficiency dust collector, the particulate matter in the gas and the large particulate matter generated during the deacidification process would be separated from the cooled and desulfurized gas effectively.
    • Stage3 Stage3The exhausted flue gas is then treated effectively by a high-temperature pulse bag dust collector to filter remaining dust, heavy metals, dioxins and other components attached to the fine particles to effectively ensure that the exhaust gas treatment meets the standard.
    • Stage4 Stage4After precision filtration by the bag dust collector, the flue gas is discharged through the chimney under the action of the centrifugal fan.
    Value-added services
    • 01 Support on-demand customization
      to meet individual needs
    • 02 Customized garbage
      disposal volume
    • 03Customized appearance
      of waste incinerator
    • 04 Customization of waste
      incineration type
    One-stop engineering service
